• Brand Name: CSC
  • Voltage: 48V
  • Origin: Mainland China
  • Design: Brushless
  • Wattage: > 400w
  • Certification: CE
  • Motor Type: Brushless Non-gear Hub Motor
  • Wheel position: Rear Wheel
  • 36V Hub Motor: Brushless gear
  • 48V Hub Motor: Brushless Non-gear

This is an important notice only for customers in EU countries:

The price displayed on AliExpress includes VAT tax, If you order the product choose to send from China, and the price is more than 150 euros the actual payment does not need to pay VAT tax.

Calculation method of actual paid price:Actual price paid = display price/(1+VAT rate)

Take CSC kit as an example: Spain VAT rate is 21%, and the display price of 36V 250W Rear SW900 20” is US $231.76+shipping US $35.66 =US $267.42

The actual paid price = 267.42/(1+21%), and the actual paid price is 221.00

Please rest assured to place an order, and any questions please contact with us.

If the EU warehouse has the same type in stock.We will deliver it from EU warehouse instead. In this way, you don’t have to pay VAT,so the price will cut off 19%-30% when you make payment .And you can also enjoy 3~7 days fast delivery time.

Hot recommendation

Recommended Hailong high quality battery
If you need inner and outer tire for the wheel, it only need extra 13usd. If you need extra disc brake rotor 16mm, only 2usd. If you need extra 7 speed 14-28T freewheel, it is only 5usd. They only can be shipped with motor wheel from China.

Packing List

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )

1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LCD3 or sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle (The LCD3 display uses Half Twist Throttle .The SW900 display uses Twist Throttle)

Motor Wheel

1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider’s weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W
7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

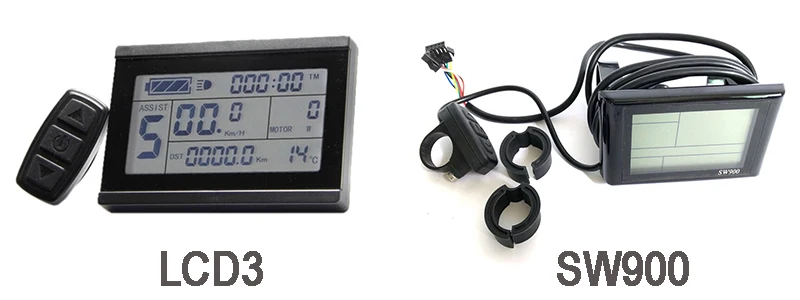

LCD3 display which comes with Brake Regeneration Anti-Charge ,cruise Function
SW900 display which comes with cruise Function


KT 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ,LCD3 Display
Rated current: 10A ,Max current: 20±1A
Size: 100*61*35mm

KT 12 mosfet controller
Fit for: 48V 1000W motor wheel,LCD3 Display
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm

KT 18 mosfet controller
Fit for: 48V 1500W motor wheel ,LCD3 Display
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm

CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ,SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel,SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ,SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm

Controller Bag


KT BZ-4(8) Magnet


LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle

Power cut-off brake leaver

Shipping & Warranty

Tracking number is also available for Seller’s shipping method.

1.)We ship by EMS ,Russian Post, hongkong post air parcel or China post air parcel. If you need it ship by DHL, FEDEX or UPS,please contact us to pay extra cost.

2. ) Import duties, taxes and charges are not included in the item price.These charges are the buyer’s responsibility. If you need DPD/ XDB shipping to European countries, please Buy the link below with Conversion Kit together. click >>>DPD/XDB<<<. If you have any questions about tax, please contact us.
please contact us to check whether you can use this service.(Product prices sent from Spain, the United States, Russia include taxes)

3. ) If you have any question after you receive the items, please contact us first. Your satisfaction is our top priority and we are confident that you will be pleased with our services.
